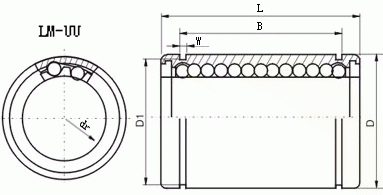

| | | | 型号 | 钢珠列数 | 重量
g | 内径 | 外径 | 长度 | 外扣环沟 | W | 偏心(max.) | 径向
间隙
(max
.um) | 动
C
(kgf) | 静
Co
(kgf) | dr | 公差 | D | 公差 | L | 公差 | B | 公差 | D1 | LM3 | 4 | 1.4 | 3 | 0
-0.008 | 7 | 0
-0.009 | 10 | 0
-0.12 | | | | | 0.008 | -3 | 7 | 11 | LM4 | 4 | 2.0 | 4 | 8 | 12 | | | | | 0.008 | -3 | 9 | 13 | LM5 | 4 | 4.0 | 5 | 10 | 15 | 10.2 | 0
-0.2 | 9.6 | 1.1 | 0.008 | -3 | 17 | 21 | LM6 | 4 | 8.5 | 6 | 0
-0.009 | 12 | 0
-0.011 | 19 | 0
-0.2 | 13.5 | 11.5 | 1.1 | 0.012 | -3 | 21 | 27 | LM8S | 4 | 11 | 8 | 15 | 17 | 11.5 | 14.3 | 1.1 | 0.012 | -3 | 18 | 23 | LM8 | 4 | 17 | 8 | 15 | 24 | 17.5 | 14.3 | 1.1 | 0.012 | -3 | 27 | 41 | LM10 | 4 | 32 | 10 | 19 | 0
-0.013 | 29 | 22 | 18 | 1.3 | 0.012 | -4 | 38 | 56 | LM12 | 4 | 36 | 12 | 21 | 30 | 23 | 20 | 1.3 | 0.012 | -4 | 42 | 61 | LM13 | 4 | 43 | 13 | 23 | 32 | 23 | 22 | 1.3 | 0.012 | -4 | 52 | 79 | LM16 | 5 | 70 | 16 | 28 | 37 | 26.5 | 27 | 1.6 | 0.012 | -6 | 79 | 120 | LM20 | 5 | 90 | 20 | 0
-0.010 | 32 | 0
-0.016 | | | 30.5 | 0
-0.3 | 30.5 | 1.6 | 0.015 | -6 | 88 | 140 | LM25 | 6 | 230 | 25 | 40 | 59 | 41 | 38 | 1.85 | 0.015 | -6 | 100 | 160 | LM30 | 6 | 260 | 30 | 45 | 64 | 44.5 | 43 | 1.85 | 0.015 | -8 | 160 | 220 | LM35 | 6 | 400 | 35 | 0
-0.012 | 52 | 0
-0.019 | 70 | 49.5 | 49 | 2.1 | 0.020 | -8 | 170 | 320 | LM40 | 6 | 600 | 40 | 60 | 80 | 60.5 | 57 | 2.1 | 0.020 | -10 | 220 | 410 | LM50 | 6 | 1600 | 50 | 80 | 100 | 74 | 76.5 | 2.6 | 0.020 | -13 | 390 | 810 | LM60 | 6 | 2000 | 60 | 0
-0.015 | 90 | 0
-0.022 | 110 | 85 | 86.5 | 3.15 | 0.025 | -13 | 480 | 1020 | LM80 | | 4500 | 80 | 120 | 140 | 0
-0.4 | 105.5 | 0
-0.4 | 116 | 4.15 | 0.025 | -20 | 750 | 1630 |
|
|
|
