UCP201外球面轴承、UCP202外球面轴承、UCP203外球面轴承、UCP204外球面轴承 ...

유니트호칭번호

축지름d(mm)

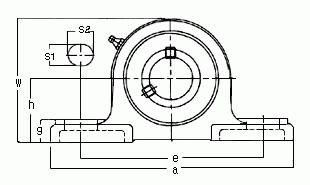

주    요    치    수 (mm)

설치볼트호칭

베 어 링

하우징호칭번호

중량(kgf)

h

a

e

b

s1

s2

g

w

Bi

n

Wc

Zc

호칭번호

기본정격하중

C(kgf)

Co(kgf)

UCP201

12

30.2

127

95

38

13

19

12

60

31

12.7

67

62

M10

UC201

1,280

650

P201

0.63

UCP202

15

30.2

127

95

38

13

19

12

60

31

12.7

67

62

M10

UC202

1,280

650

P202

0.61

UCP203

17

30.2

127

95

38

13

19

12

60

31

12.7

67

62

M10

UC203

1,280

650

P203

0.60

UCP204

20

33.3

127

95

38

13

19

13

64

31

12.7

70

62

M10

UC204

1,280

650

P204

0.66

UCP205

25

36.5

140

105

38

13

19

13

71

34

14.3

76

70

M10

UC205

1,400

730

P205

0.80

UCP206

30

42.9

165

121

48

17

21

15

84

38.1

15.9

88

75

M14

UC206

1,950

1,050

P206

1.3

UCP207

35

47.6

167

127

48

17

21

16

93

42.9

17.5

99

80

M14

UC207

2,570

1,430

P207

1.6

UCP208

40

49.2

184

137

54

17

21

17

98

49.2

19

105

90

M14

UC208

2,910

1,650

P208

2.0

UCP209

45

54

190

146

54

17

21

17

106

49.2

19

113

95

M14

UC209

3,200

1,850

P209

2.2

UCP210

50

57.2

206

159

60

20

22

19

113

51.6

19

119

100

M16

UC210

3,510

2,100

P210

2.9

UCP211

55

63.5

219

171

60

20

22

19

125

55.6

22.2

130

100

M16

UC211

4,330

2,660

P211

3.6

UCP212

60

69.8

241

184

70

20

25

22

138

65.1

25.4

143

115

M16

UC212

5,240

3,300

P212

4.9

UCP213

65

76.2

265

203

70

25

30

25

150

65.1

25.4

155

120

M20

UC213

5,720

3,650

P213

5.9

UCP214

70

79.4

266

210

72

25

30

28

156

74.6

30.2

162

135

M20

UC214

6,220

4,000

P214

6.8

UCP215

75

82.6

275

217

74

25

30

28

162

77.8

33.3

168

135

M20

UC215

6,740

4,400

P215

7.4

UCP216

80

88.9

292

232

78

25

35

32

174

82.6

33.3

181

145

M20

UC216

7,260

4,750

P216

9.0

UCP217

85

95.2

310

247

83

25

40

32

185

85.7

34.1

191

155

M20

UC217

8,390

5,600

P217

10.8

UCP218

90

101.6

327

262

88

27

45

34

198

96

39.7

204

165

M22

UC218

9,600

6,450

P218

13.9
