上佳导轨传动
|
 |
|

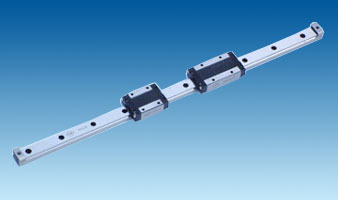

上佳SGC微型导轨滑块副
|
|
|

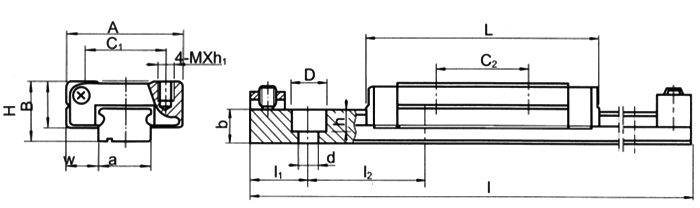

安装连接尺寸 |
|
型号
规格
model |
导轨副
guide |
导轨 rail |
滑座block |
额定载荷
（KN）
load rating |
|
H |
W |
a |
b |
L1 |
L2 |
d×D×h |
A |
B |
L |
C1 |
C2 |
M×e |
C |
C0 |
|
SGC9V |
10 |
5.5 |
9 |
5.5 |
10 |
20 |
3.5×6×3.5 |
20 |
7.8 |
30.4 |
15 |
10 |
M3×3 |
1.7 |
2.5 |
|
SGC9W |
10 |
5.5 |
9 |
5.5 |
10 |
20 |
3.5×6×3.5 |
20 |
7.8 |
41 |
15 |
16 |
M3×3 |
2.6 |
3.8 |
|
SGC12V |
13 |
7.5 |
12 |
7.5 |
10 |
25 |
3.5×6×4.5 |
27 |
10 |
35 |
20 |
15 |
M3×3.5 |
2.2 |
3.1 |
|
SGC12W |
13 |
7.5 |
12 |
7.5 |
10 |
25 |
3.5×6×4.5 |
27 |
10 |
49.1 |
20 |
20 |
M3×3.5 |
3.5 |
5.1 |
|
SGC15V |
16 |
8.5 |
15 |
9.5 |
15 |
40 |
3.5×6×4.5 |
32 |
12 |
45.3 |
25 |
20 |
M3×4 |
3.6 |
5.4 |
|
SGC15W |
16 |
8.5 |
15 |
9.5 |
15 |
40 |
3.5×6×4.5 |
32 |
12 |
61.2 |
25 |
25 |
M3×4 |
5.9 |
8.7 |
|
|
|
|
|
精度 |
运动精度 |
|
 |
 |
|
|
|
|
综合精度 μm |
径向间隙 μm |
|
精度等级
accuracy grade |
项目item |
3 |
4 |
5 |
|
H |
极限偏差
dimension tolerance |
±25 |
±50 |
±100 |
|
同组变动量
pair variation |
7 |
20 |
40 |
|
W |
极限偏差
dimension tolerance |
±30 |
±60 |
±150 |
|
同组变动量
pair variation |
10 |
25 |
70 |
|
|
|
 |
 |
|
