线性传动系统
|
 |
|

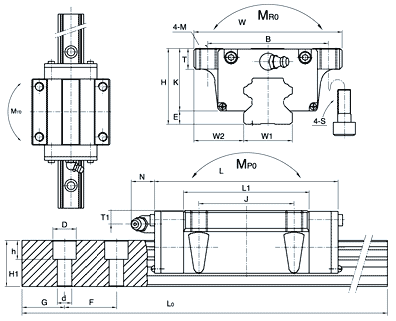

SBC滑块-法兰型SBG-FL/FLL
|
|
|
型号 |
安装尺寸 |
滑块尺寸 |
|
高度
H |
E |
W2 |
宽度
W |
长度
L |
安装孔尺寸 |
L1 |
K |
T |
注油嘴 |
|
B×J |
M |
S |
安装孔 |
T1 |
N |
|
SBG15FL |
24 |
2.65 |
16 |
47 |
58.8 |
38×30 |
M5 |
M4 |
38.8 |
21.35 |
7.2 |
Ø3.5 |
4 |
5 |
|
SBG20FL |
30 |
3.5 |
21.5 |
63 |
77.2 |
53×40 |
M6 |
M5 |
50.8 |
26.5 |
9 |
M6×0.75 |
7 |
9.8 |
|
SBG20FLL |
30 |
3.5 |
21.5 |
63 |
93.2 |
53×40 |
M6 |
M5 |
66.8 |
26.5 |
9 |
M6×0.75 |
7 |
9.8 |
|
SBG25FL |
36 |
5 |
23.5 |
70 |
86.9 |
57×45 |
M8 |
M6 |
59.5 |
31 |
10 |
M6×0.75 |
6.5 |
9.8 |
|
SBG25FLL |
36 |
5 |
23.5 |
70 |
106.4 |
57×45 |
M8 |
M6 |
79 |
31 |
10 |
M6×0.75 |
6.5 |
9.8 |
|
SBG30FL |
42 |
6.5 |
31 |
90 |
98 |
72×52 |
M10 |
M8 |
70.4 |
35.5 |
12 |
M6×0.75 |
8.5 |
10.7 |
|
SBG30FLL |
42 |
6.5 |
31 |
90 |
120.5 |
72×52 |
M10 |
M8 |
92.9 |
35.5 |
12 |
M6×0.75 |
8.5 |
10.7 |
|
SBG35FL |
48 |
7.5 |
33 |
100 |
109.5 |
82×62 |
M10 |
M8 |
80.4 |
40.5 |
13 |
M6×0.75 |
9.5 |
10.7 |
|
SBG35FLL |
48 |
7.5 |
33 |
100 |
135 |
82×62 |
M10 |
M8 |
105.9 |
40.5 |
13 |
M6×0.75 |
9.5 |
10.7 |
|
SBG45FL |
60 |
7.3 |
37.5 |
120 |
136 |
100×80 |
M12 |
M10 |
98 |
52.7 |
15 |
PT 1/8 |
10.5 |
11 |
|
SBG45FLL |
60 |
9.8 |
37.5 |
120 |
168 |
100×80 |
M12 |
M10 |
130 |
52.7 |
15 |
PT 1/8 |
10.5 |
11 |
|
SBG55FL |
70 |
9.8 |
43.5 |
140 |
160 |
116×95 |
M14 |
M12 |
118 |
60.2 |
17 |
PT 1/8 |
12 |
11 |
|
SBG55FLL |
70 |
9.8 |
43.5 |
140 |
198 |
116×95 |
M14 |
M12 |
156 |
60.2 |
17 |
PT 1/8 |
12 |
11 |
|
SBG65FL |
90 |
17.5 |
53.5 |
170 |
189 |
142×110 |
M16 |
M14 |
147 |
72.5 |
23 |
PT 1/8 |
15 |
11 |
|
SBG65FLL |
90 |
17.5 |
53.5 |
170 |
249 |
142×110 |
M16 |
M14 |
207 |
72.5 |
23 |
PT 1/8 |
15 |
11 |
|
|
|
<, DIV align=center>
|
型号 |
滑轨尺寸 |
负载能力 |
重量 |
|
宽度
W1 |
高度
H |
孔间距
F |
安装孔尺寸
d×D×h |
G |
导轨最大
长度
LOMAX |
动负载
C(N) |
静负载
CO(N) |
静态扭矩
(kgf·m) |
滑块
(kg) |
滑轨
(kg/m) |
|
MRO |
MPO |
MYO |
|
SBG15FL |
15 |
15 |
60 |
4.5×7.5×5.3 |
20 |
3000 |
8330 |
13426 |
7 |
5 |
5 |
0.18 |
1.45 |
|
SBG20FL |
20 |
17.5 |
60 |
6×9.5×8.5 |
20 |
4000 |
14210 |
25088 |
22 |
18 |
18 |
0.42 |
2.20 |
|
SBG20FLL |
20 |
17.5 |
60 |
6×9.5×8.5 |
20 |
4000 |
16905 |
36554 |
29 |
32 |
32 |
0.54 |
2.20 |
|
SBG25FL |
23 |
21.8 |
60 |
7×11×9 |
20 |
4000 |
20972 |
39200 |
36 |
32 |
31 |
0.62 |
3.10 |
|
SBG25FLL |
23 |
21.8 |
60 |
7×11×9 |
20 |
4000 |
24667 |
48069 |
44 |
50 |
49 |
0.78 |
3.10 |
|
SBG30FL |
28 |
25 |
80 |
9×14×12 |
20 |
4000 |
29204 |
53802 |
60 |
50 |
49 |
1.10 |
4.45 |
|
SBG30FLL |
28 |
25 |
80 |
9×14×12 |
20 |
4000 |
35300 |
67904 |
75 |
81 |
80 |
1.44 |
4.45 |
|
SBG35FL |
34 |
29 |
80 |
9×14×12 |
20 |
4000 |
38808 |
68698 |
96 |
75 |
73 |
1.57 |
6.40 |
|
SBG35FLL |
34 |
29 |
80 |
9×14×12 |
20 |
4000 |
46070 |
90405 |
126 |
133 |
131 |
2.14 |
6.40 |
|
SBG45FL |
45 |
38 |
105 |
14×20×17 |
22.5 |
4000 |
61642 |
110662 |
202 |
159 |
157 |
2.96 |
11.25 |
|
SBG45FLL |
45 |
38 |
105 |
14×20×17 |
22.5 |
4000 |
75597 |
138552 |
250 |
238 |
235 |
3.75 |
11.25 |
|
SBG55FL |
53 |
45 |
120 |
16×23×20 |
30 |
4000 |
91209 |
156918 |
344 |
274 |
270 |
4.49 |
15.25 |
|
SBG55FLL |
53 |
45 |
120 |
16×23×20 |
30 |
4000 |
111847 |
196666 |
427 |
413 |
405 |
5.68 |
15.25 |
|
SBG65FL |
63 |
58.5 |
150 |
18×26×22 |
35 |
4000 |
147980 |
240100 |
629 |
495 |
484 |
6.70 |
23.90 |
|
SBG65FLL |
63 |
58.5 |
150 |
18×26×22 |
35 |
4000 |
189140 |
320460 |
834 |
850 |
830 |
9.5 |
23.90 |
|
1KN=102kg·f |
|
|
 |
 |
|
