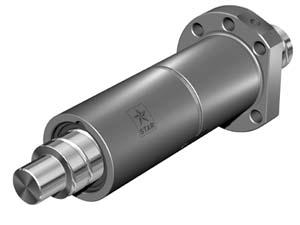

REXROTH/STAR滚珠丝杆-法兰式双螺母FDM-E-C
|
Rexroth滚珠丝杆传动系统
REXROTH/STAR滚珠螺母
法兰式双螺母FDM-E-C
法兰形式C
带标准密封
预紧7%或10%额定动载荷
用于滚压精密丝杠SN-R，公差等级T5，T7
和精密丝杠SN-F，公差等级P1，P3，P5，(T7) |
 |
 |
|
|
|
|

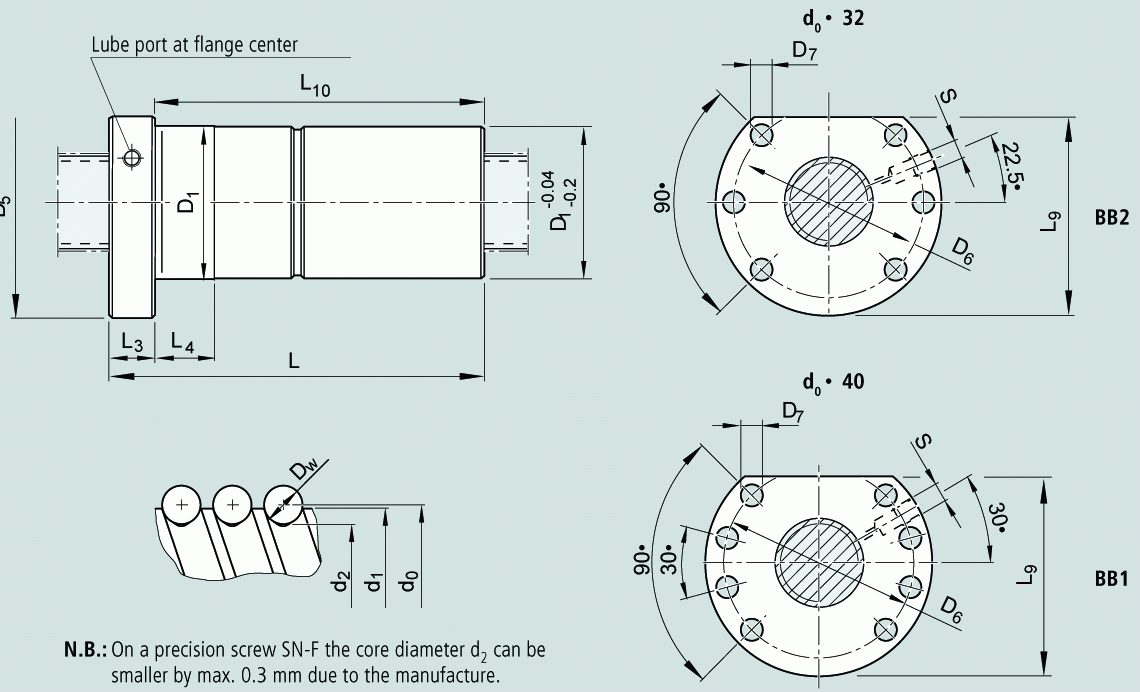

d0=公称直径，P=螺距(R=右，L=左)，Dw=滚珠直径，i=螺母内滚珠螺旋圈数 |
|
规格
d0×P×Dw - i |
部件号 |
额定载荷 |
速度
Vmax
m/
min |
尺寸(mm) |
|
动载
C
(N) |
静载
C0
(N) |
d1 |
d2 |
D1
g6 |
D5 |
安装
孔图 |
D6 |
D7 |
L |
L3 |
L4 |
L9 |
L10 |
S |
重量
m
(kg) |
|
16×5R×3-4 |
1502-0-1055 |
12300 |
16100 |
30 |
15.0 |
12.9 |
28 |
48 |
BB2 |
38 |
5.5 |
72 |
12 |
10 |
44 |
60 |
M6 |
0.29 |
|
20×5R×3-4 |
1502-1-1075 |
14300 |
21500 |
30 |
19.0 |
16.9 |
36 |
58 |
BB2 |
47 |
6.6 |
82 |
12 |
10 |
51 |
70 |
M6 |
0.53 |
|
25×5R×3-4 |
1502-2-1075 |
15900 |
27200 |
30 |
24.0 |
21.9 |
40 |
62 |
BB2 |
51 |
6.6 |
82 |
12 |
10 |
55 |
70 |
M6 |
0.57 |
|
25×10R×3-4 |
1502-2-4075 |
15700 |
27000 |
60 |
24.0 |
21.9 |
40 |
62 |
BB2 |
51 |
6.6 |
120 |
12 |
16 |
55 |
108 |
M6 |
0.77 |
|
32×5R×3.5-4 |
1502-3-1075 |
21600 |
40000 |
23 |
31.0 |
28.4 |
50 |
80 |
BB2 |
65 |
9 |
88 |
13 |
10 |
71 |
75 |
M6 |
0.96 |
|
32×10R×3.969-5 |
1502-3-4076 |
31700 |
58300 |
47 |
31.0 |
27.9 |
50 |
80 |
BB2 |
65 |
9 |
146 |
13 |
16 |
71 |
133 |
M6 |
1.34 |
|
40×5R×3.5-5 |
1502-4-1076 |
29100 |
64100 |
19 |
39.0 |
36.4 |
63 |
93 |
BB1 |
78 |
9 |
100 |
15 |
10 |
81.5 |
85 |
M8*1 |
1.68 |
|
40×10R×6-4 |
1502-4-4075 |
50000 |
86400 |
38 |
38.0 |
33.8 |
63 |
93 |
BB1 |
78 |
9 |
140 |
15 |
16 |
81.5 |
125 |
M8*1 |
2.15 |
|
40×10R×6-6 |
1502-4-4076 |
72100 |
132200 |
38 |
38.0 |
33.8 |
63 |
93 |
BB1 |
78 |
9 |
180 |
15 |
16 |
81.5 |
165 |
M8*1 |
2.73 |
|
40×20R×6-3 |
1502-4-7075 |
37900 |
62800 |
75 |
38.0 |
33.8 |
63 |
93 |
BB1 |
78 |
9 |
175 |
15 |
25 |
81.5 |
160 |
M8*1 |
2.56 |
|
50×5R×3.5-5 |
1502-5-1076 |
32000 |
81300 |
5 |
49.0 |
46.4 |
75 |
110 |
BB1 |
93 |
11 |
100 |
15 |
10 |
97.5 |
85 |
M8*1 |
2.25 |
|
50×10R×6-4 |
1502-5-4075 <, /TD>
|
55400 |
109000 |
30 |
48.0 |
43.8 |
75 |
110 |
BB1 |
93 |
11 |
140 |
18 |
16 |
97.5 |
122 |
M8*1 |
2.97 |
|
50×10R×6-6 |
1502-5-4076 |
79700 |
166500 |
30 |
48.0 |
43.8 |
75 |
110 |
BB1 |
93 |
11 |
180 |
18 |
16 |
97.5 |
162 |
M8*1 |
3.73 |
|
50×20R×6.5-5 |
1502-5-7076 |
75700 |
149700 |
60 |
48.0 |
43.4 |
75 |
110 |
BB1 |
93 |
11 |
255 |
18 |
25 |
97.5 |
237 |
M8*1 |
4.93 |
|
63×10R×6-4 |
1502-6-4075 |
61800 |
140500 |
24 |
61.0 |
56.8 |
90 |
125 |
BB1 |
108 |
11 |
140 |
22 |
16 |
110 |
118 |
M8*1 |
4 |
|
63×10R×6-6 |
1502-6-4076 |
88800 |
214300 |
24 |
61.0 |
56.8 |
90 |
125 |
BB1 |
108 |
11 |
180 |
22 |
16 |
110 |
158 |
M8*1 |
4.45 |
|
63×20R×6.5-5 |
1502-6-7076 |
83900 |
190300 |
48 |
61.0 |
56.4 |
95 |
135 |
BB1 |
115 |
13.5 |
255 |
22 |
25 |
117.5 |
233 |
M8*1 |
8.21 |
|
80×10R×6.5-6 |
1502-7-4076 |
108400 |
291700 |
19 |
78.0 |
73.3 |
105 |
145 |
BB1 |
125 |
13.5 |
190 |
22 |
16 |
127.5 |
168 |
M8*1 |
5.93 |
|
80×20R×12.7-6 |
1502-7-7046 |
262700 |
534200 |
30 |
76.0 |
67.0 |
125 |
165 |
BB1 |
145 |
13.5 |
340 |
25 |
25 |
147.5 |
315 |
M8*1 |
19.4 |
|
100×10R×6.5-6 |
1502-8-4056 |
119500 |
371900 |
10 |
98.0 |
93.4 |
125 |
165 |
BB1 |
145 |
13.5 |
190 |
25 |
16 |
147.5 |
165 |
M8*1 |
7.35 |
|
100×20R×12.7-6 |
1502-8-7056 |
295100 |
686400 |
20 |
96.0 |
87.1 |
150 |
202 |
BB1 |
176 |
17.5 |
340 |
30 |
25 |
178.5 |
310 |
M8*1 |
24.6 |
|
125×10R×6.5-6 |
1502-9-4056 |
130600 |
468700 |
8 |
123.0 |
118.0 |
150 |
202 |
BB1 |
176 |
17.5 |
190 |
25 |
16 |
178.5 |
165 |
M8*1 |
9.38 |
|
125×20R×12.7-6 |
1502-9-7056 |
326500 |
870400 |
16 |
121.0 |
112.0 |
170 |
222 |
BB1 |
196 |
17.5 |
340 |
40 |
25 |
198.5 |
300 |
M8*1 |
29.7 |
|
|
|
|
