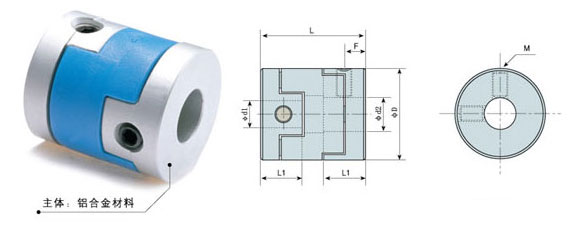

定位螺丝固定式(十字滑块联轴器) |
| 特性： |
|
| ●联轴器中间用十字滑块联接 |
●容许大的径向和角向偏差 |
| ●零回转间隙 |
●高扭矩刚性和灵敏度 |
| ●结构简单、抗油腐蚀和电气绝缘 |
●定位螺丝固定 |
|
|
|
|
|
L |
F |
|
M |
|
额定
扭矩
(N•m) |
最大
扭矩
(N•m) |
|
|
静态
扭矩刚性
(N•m/rad) |
|
角向
偏差
(°) |
重量
(g) |
LK4-16-_ _ _ _ |
4 5 6 |
16 |
18 |
3.5 |
7 |
M3 |
0.7 |
0.7 |
1.4 |
9000 |
3.0×10-7 |
29 |
1.0 |
3.0 |
6 |
LK4-20-_ _ _ _ |
6 6.35 8 |
20 |
23 |
4.5 |
9 |
M4 |
1.7 |
1.6 |
3.2 |
7400 |
9.0×10-7 |
58 |
1.4 |
3.0 |
14 |
LK4-25-_ _ _ _ |
6.35 8
9.525 10 |
25 |
28 |
5.5 |
11 |
M5 |
4.0 |
3.0 |
6.0 |
5800 |
2.8×10-6 |
125 |
1.9 |
3.0 |
24 |
LK4-32-_ _ _ _ |
8 9.525 10
11 12 14 |
32 |
33 |
6.5 |
13 |
M6 |
7.0 |
5.5 |
11.0 |
4700 |
8.9×10-5 |
260 |
2.4 |
3.0 |
46 |
LK4-40-_ _ _ _ |
12 14
15 16 |
40 |
35 |
7.0 |
14 |
M6 |
7.0 |
9.0 |
18.0 |
3600 |
2.1×10-5 |
505 |
2.8 |
3.0 |
80 |
LK4-50-_ _ _ _ |
14 15 16
18 19 20 |
50 |
38 |
8.5 |
17 |
M8 |
15.0 |
19.0 |
38.0 |
3000 |
6.0×10-5 |
780 |
3.3 |
3.0 |
144 |
LK4-63-_ _ _ _ |
16 18 19
20 24 25
|
63 |
47 |
10.5 |
21 |
M10 |
30.0 |
33.0 |
66.0 |
2400 |
2.1×10-4 |
1200 |
3.8 |
3.0 |
318 |
|
|

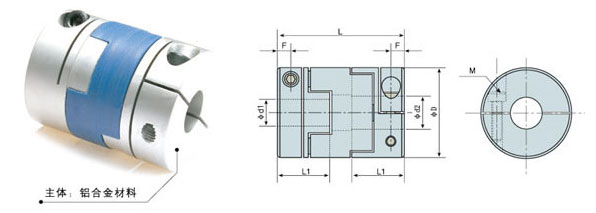

夹紧螺丝固定式(十字滑块联轴器) |
| 特性： |
|
| ●联轴器中间用十字滑块联接 |
●容许大的径向和角向偏差 |
| ●零回转间隙 |
●高扭矩刚性和灵敏度 |
| ●结构简单、抗油腐蚀和电气绝缘 |
●夹紧螺丝固定 |
|
|
|
|
|
L |
F |
|
M |
|
额定
扭矩
(N•m) |
最大
扭矩
(N•m) |
|
|
静态
扭矩刚性
(N•m/rad) |
|
角向
偏差
(°) |
重量
(g) |
LK4-C16-_ _ _ _ |
4 5 6 |
16 |
30 |
3.0 |
13 |
M2.5 |
0.7 |
0.7 |
1.4 |
9000 |
5.0×10-7 |
29 |
1.0 |
3.0 |
12 |
LK4-C20-_ _ _ _ |
6 6.35 8 |
20 |
33 |
3.0 |
14 |
M2.5 |
1.7 |
1.6 |
3.2 |
7400 |
1.4×10-7 |
58 |
1.4 |
3.0 |
20 |
LK4-C25-_ _ _ _ |
6.35 8
9.525 10 |
25 |
39 |
3.8 |
17 |
M3 |
4.0 |
3.0 |
6.0 |
5800 |
4.1×10-6 |
125 |
1.9 |
3.0 |
36 |
LK4-C32-_ _ _ _ |
8 9.525 10
11 12 14 |
32 |
45 |
4.5 |
19 |
M4 |
7.0 |
5.5 |
11.0 |
4700 |
1.2×10-5 |
260 |
2.4 |
3.0 |
66 |
LK4-C40-_ _ _ _ |
12 14
15 16 |
40 |
50 |
7.0 |
23 |
M5 |
7.0 |
9.0 |
18.0 |
3600 |
3.8×10-5 |
505 |
2.8 |
3.0 |
114 |
LK4-C50-_ _ _ _ |
14 15 16
18 19 20 |
50 |
58 |
8.0 |
27 |
M6 |
15.0 |
19.0 |
38.0 |
3000 |
1.0×10-4 |
780 |
3.3 |
3.0 |
206 |
LK4-C63-_ _ _ _ |
16 18 19
20 24 25 |
63 |
71 |
10 |
33 |
M8 |
30.0 |
33.0 |
66.0 |
2400 |
3.5×10-4 |
1200 |
3.8 |
3.0 |
454 |
|
| |
|
