输送系统 无动力式辊子输送机
输送货物 箱子、麻袋、散装货物处理、托盘、周转箱等
适用场合 室内输送
轴承组件 塑座材质、增强尼龙
626、6001、6204非标轴承 半精密级 |
管 |
|
轴 |
直缝电焊钢管GB/T13793-1992
外径38,60mm
不锈钢焊接管GB/T12770-1991
外径38,60mm
铝合金挤圆管GB/T4436-1995
外径38,60mm
聚氯乙烯(PVC)工程材料
外径38mm |
|
冷拉圆钢GB/T905-1994
冷拉六角钢GB/T905-1994
镀锌处理(仅用于不锈钢外管时)
弹簧压入式直径12,20
全扁榫式直径12,20
内牙轴式直径12,20
通轴销孔式直径12,20 |
|
|

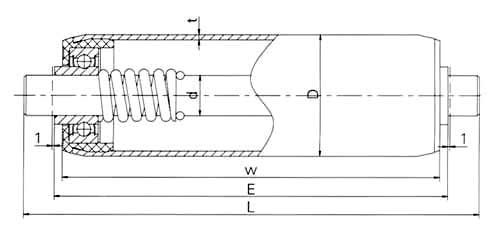

弹簧压入式
  |
辊子外径 D |
轴芯直径
d |
|
38 |
12 |
E = W + 7 L = E + 22 |
60 |
20 |
E = W + 6 L = E + 22 |
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863 |
|
外管材质 |
管径及壁厚 |
轴芯直径
d |
D × t |
Ø12 |
Ø20 |
钢制镀锌
|
Ø38 × 1.5 |
AOOD-HDA-ADA |
|
Ø60 × 2.0 |
|
AOOD-HJA-AGA |
不锈钢
|
Ø38 × 1.5 |
AOOD-NCC-BDA |
|
Ø60 × 2.0 |
|
AOOD-NJC-BGA |
铝合金
|
Ø38 × 1.5 |
AOOD-ADC-ADA |
|
Ø60 × 2.0 |
|
AOOD-AJC-AGA |
|
|
|

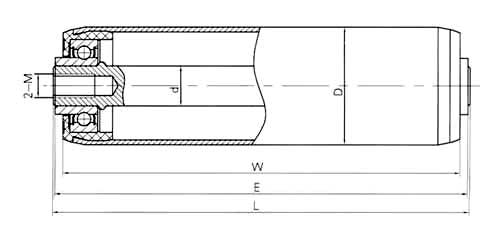

内牙轴式
  |
辊子外径 D |
轴芯直径
d |
|
38 |
12 |
E = W + 9 L = E + 2 |
60 |
20 |
E = W + 9 L = E + 2 |
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863 |
|
外管材质 |
管径及壁厚 |
轴芯直径
d |
D × t |
Ø12 / M8 × 15 |
Ø20 / M12 × 25 |
钢制镀锌
|
Ø38 × 1.5 |
AOOD-HDA-ADB |
|
Ø60 × 2.0 |
|
AOOD-HJA-AGB |
不锈钢
|
Ø38 × 1.5 |
AOOD-NCC-BDB |
|
Ø60 × 2.0 |
|
AOOD-NJC-BGB |
铝合金
|
Ø38 × 1.5 |
AOOD-ADC-ADB |
|
Ø60 × 2.0 |
|
AOOD-AJC-AGB |
|
|
|

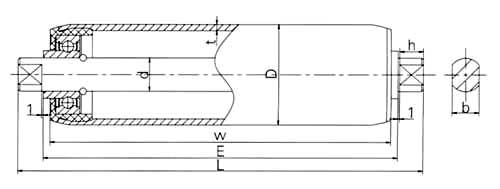

全扁榫式
  |
辊子外径 D |
轴芯直径 d |
|
38 |
12 |
E = W + 7 L = E + 22 |
60 |
20 |
E = W + 6 L = E + 22 |
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863 |
|
外管材质 |
管径及壁厚 |
轴芯直径 d |
D × t |
Ø12 / bh 8 × 10 |
Ø20 / bh 16 × 14 |
钢制镀锌
|
Ø38 × 1.5 |
AOOD-HDA-ADC |
|
Ø60 × 2.0 |
|
AOOD-HJA-AGC |
不锈钢
|
Ø38 × 1.5 |
AOOD-NCC-BDC |
|
Ø60 × 2.0 |
|
AOOD-NJC-BGC |
铝合金
|
Ø38 × 1.5 |
AOOD-ADC-ADC |
|
Ø60 × 2.0 |
|
AOOD-AJC-AGC |
|
|
|

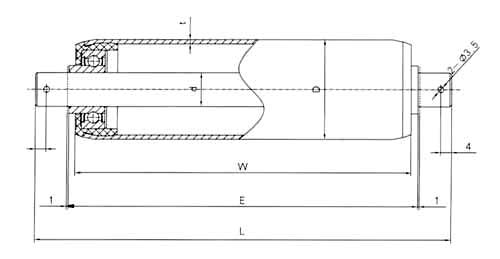

通轴销孔式
  |
辊子外径 D |
轴芯直径 d |
|
38 |
12 |
E = W + 9 L = E + 22 |
60 |
20 |
E = W + 8 L = E + 22 |
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863 |
|
外管材质 |
管径及壁厚 |
轴芯直径 d |
D × t |
Ø12 |
Ø20 |
钢制镀锌
|
Ø38 × 1.5 |
AOOD-HDA-ADD |
|
Ø60 × 2.0 |
|
AOOD-HJA-AGD |
不锈钢
|
Ø38 × 1.5 |
AOOD-NCC-BDD |
|
Ø60 × 2.0 |
|
AOOD-NJC-BGD |
铝合金
|
Ø38 × 1.5 |
AOOD-ADC-ADD |
|
Ø60 × 2.0 |
|
AOOD-AJC-AGD |
|
|
| |
|
