输送系统 无动力式辊子输送机
输送货物 托盘、轮胎、钢板、周转箱、纸箱等
适用场合 室内输送
轴承组件 轴承钢座镀锌
非标轴承半精密级 |
管 |
|
轴 |
直缝电焊钢管GB/T13793-1992
外径38,42,50,57,60,63,76,80,89mm
不锈钢焊接管GB/T12770-1991
外径38,50,60mm
不锈钢无缝管GB/T8162-87
外径76,89mm
铝合金挤圆管GB/T4436-1995
外径38,50,60mm |
|
冷拉圆钢GB/T905-1994
镀锌处理(仅用于不锈钢外管时)
弹簧压入式直径12,15,17,20
全扁榫式直径12,15,17,20
内牙轴式直径12,15,17,20
通轴销孔式直径12,15,17,20 |
|
|

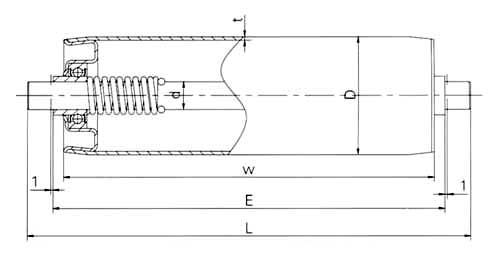

弹簧压入式
  |
辊子外径
D |
轴芯
直径
d |
|
38,42,50,57,60 |
12 |
E=W+9 L=W+11 |
50,60 |
15 |
E=W+9 L=W+11 |
80 |
17 |
E=W+9 L=W+11 |
76,80,89 |
20 |
E=W+9 L=W+11 |
优选长度:
E = 304,352,405,456,504,558,609,656,
710,761,863 |
|
外管材质 |
管径及壁厚 |
轴芯直径 d |
D × t |
Ø12 |
Ø15 |
Ø17 |
Ø20 |
钢制镀锌 |
Ø38 × 1.5 |
AOOC-HDA-ADA |
|
|
|
Ø42 × 1.5 |
AOOC-HEA-ADA |
|
|
|
Ø50 × 1.5 |
AOOC-HGA-ADA |
AOOC-HGA-AEA |
|
|
Ø57 × 1.5 |
AOOC-HHA-ADA |
|
|
|
Ø60 × 1.5 |
AOOC-HIA-ADA |
|
|
|
Ø60 × 2.0 |
AOOC-HJA-ADA |
AOOC-HJA-AEA |
|
AOOC-HJA-AGA |
Ø60 × 2.5 |
|
AOOC-HKA-AEA |
|
|
Ø63 × 2.0 |
|
AOOC-HMA-AEA |
|
|
Ø76 × 2.5 |
|
AOOC-HNA-AEA |
|
AOOC-HNA-AGA |
Ø76 × 3.0 |
|
AOOC-HOA-AEA |
|
AOOC-HOA-AGA |
Ø80 × 4.0 |
|
|
AOOC-HPA-AFA |
AOOC-HPA-AGA |
Ø89 × 3.0 |
|
|
|
AOOC-HQA-AGA |
Ø89 × 3.5 |
|
|
|
AOOC-HRA-AGA |
不锈钢 |
Ø38 × 1.5 |
AOOC-NCC.BDA |
|
|
|
Ø50 × 1.5 |
AOOC-NFC-BDA |
|
|
|
Ø60 × 1.5 |
AOOC-NIC-BDA |
AOOC-NJC-BEA |
|
|
Ø60 × 2.0 |
AOOC-NJC-BDA |
|
|
|
Ø76 × 3.0 |
|
|
|
AOOC-NOC-BGA |
铝合金 |
Ø38 × 1.5 |
AOOC-ADC-ADA |
|
|
|
Ø50.6 × 1.5 |
AOOC-AFC-ADA |
|
|
|
Ø60 × 2.0 |
AOOC-AJC-ADA |
AOOC-AJC-AEA |
|
|
Ø76 × 3.0 |
|
|
|
AOOC-AOC-AGA |
Ø80 × 4.0 |
|
|
AOOC-APC-AFA |
AOOC-APC-AGA |
Ø89 × 4.0 |
|
|
|
AOOC-ASC-AGA |
|
|
|

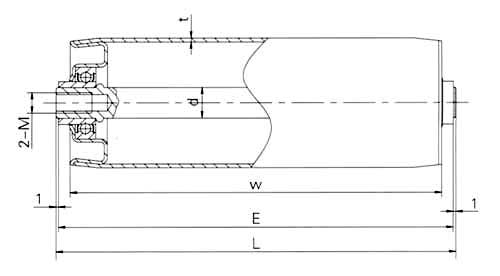

内牙轴式
  |
辊子外径
D |
轴芯
直径
d |
|
38,42,50,57,60 |
12 |
E=W+9 L=W+31 |
50,60 |
15 |
E=W+9 L=W+31 |
80 |
17 |
E=W+9 L=W+31 |
76,80,89 |
20 |
E=W+9 L=W+31 |
优选长度:
E = 304,352,405,456,504,558,609,656,
710,761,863 |
|
外管材质 |
管径及壁厚 |
轴芯直径 d |
D × t |
Ø12 / M8 × 15 |
Ø15 / M10 × 20 |
Ø17 / M10 × 20 |
Ø20 / M12 × 25 |
钢制镀锌 |
Ø38 × 1.5 |
AOOC-HDA-ADB |
|
|
|
Ø42 × 1.5 |
AOOC-HEA-ADB |
|
|
|
Ø50 × 1.5 |
AOOC-HGA-ADB |
AOOC-HGA-AEB |
|
|
Ø57 × 1.5 |
AOOC-HHA-ADB |
|
|
|
Ø60 × 1.5 |
AOOC-HIA-ADB |
|
|
|
Ø60 × 2.0 |
AOOC-HJA-ADB |
AOOC-HJA-AEB |
|
AOOC-HJA-AGB |
Ø60 × 2.5 |
|
AOOC-HKA-AEB |
|
|
Ø63 × 2.0 |
|
AOOC-HMA-AEB |
|
|
Ø76 × 2.5 |
|
AOOC-HNA-AEB |
|
AOOC-HNA-AGB |
Ø76 × 3.0 |
|
AOOC-HOA-AEB |
|
AOOC-HOA-AGB |
Ø80 × 4.0 |
|
|
AOOC-HPA-AFB |
AOOC-HPA-AGB |
Ø89 × 3.0 |
|
|
|
AOOC-HQA-AGB |
Ø89 × 3.5 |
|
|
|
AOOC-HRA-AGB |
不锈钢 |
Ø38 × 1.5 |
AOOC-NCC.BDB |
|
|
|
Ø50 × 1.5 |
AOOC-NFC-BDB |
|
|
|
Ø60 × 1.5 |
AOOC-NIC-BDB |
AOOC-NJC-BEB |
|
|
Ø60 × 2.0 |
AOOC-NJC-BDB |
|
|
|
Ø76 × 3.0 |
|
|
|
AOOC-NOC-BGB |
铝合金 |
Ø38 × 1.5 |
AOOC-ADC-ADB |
|
|
|
Ø50.6 × 1.5 |
AOOC-AFC-ADB |
|
|
|
Ø60 × 2.0 |
AOOC-AJC-ADB |
AOOC-AJC-AEB |
|
|
Ø76 × 3.0 |
|
|
|
AOOC-AOC-AGB |
Ø80 × 4.0 |
|
|
AOOC-APC-AFB |
AOOC-APC-AGB |
Ø89 × 4.0 |
|
|
|
AOOC-ASC-AGB |
|
|
|

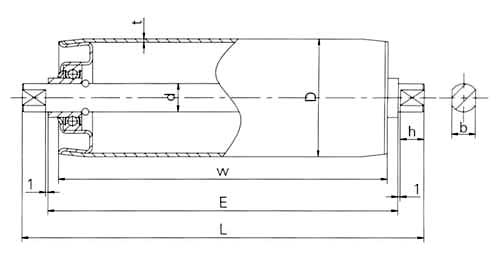

全扁榫式
  |
辊子外径
D |
轴芯
直径
d |
|
38,42,50,57,60 |
12 |
E=W+9 L=W+31 |
50,60 |
15 |
E=W+9 L=W+31 |
80 |
17 |
E=W+9 L=W+31 |
76,80,89 |
20 |
E=W+9 L=W+31 |
优选长度:
E = 304,352,405,456,504,558,609,656,
710,761,863 |
|
外管材质 |
管径及壁厚 |
轴芯直径 d |
D × t |
Ø12 / bh 8 × 10 |
Ø15 / bh 12 × 10 |
Ø17 / bh 14 × 10 |
Ø20 / bh 16 × 14 |
钢制镀锌 |
Ø38 × 1.5 |
AOOC-HDA-ADC |
|
|
|
Ø42 × 1.5 |
AOOC-HEA-ADC |
|
|
|
Ø50 × 1.5 |
AOOC-HGA-ADC |
AOOC-HGA-AEC |
|
|
Ø57 × 1.5 |
AOOC-HHA-ADC |
|
|
|
Ø60 × 1.5 |
AOOC-HIA-ADC |
|
|
|
Ø60 × 2.0 |
AOOC-HJA-ADC |
AOOC-HJA-AEC |
|
AOOC-HJA-AGC |
Ø60 × 2.5 |
|
AOOC-HKA-AEC |
|
|
Ø63 × 2.0 |
|
AOOC-HMA-AEC |
|
|
Ø76 × 2.5 |
|
AOOC-HNA-AEC |
|
AOOC-HNA-AGC |
Ø76 × 3.0 |
|
AOOC-HOA-AEC |
|
AOOC-HOA-AGC |
Ø80 × 4.0 |
|
|
AOOC-HPA-AFC |
AOOC-HPA-AGC |
Ø89 × 3.0 |
|
|
|
AOOC-HQA-AGC |
Ø89 × 3.5 |
|
|
|
AOOC-HRA-AGC |
不锈钢 |
Ø38 × 1.5 |
AOOC-NCC.BDC |
|
|
|
Ø50 × 1.5 |
AOOC-NFC-BDC |
|
|
|
Ø60 × 1.5 |
AOOC-NIC-BDC |
AOOC-NJC-BEC |
|
|
Ø60 × 2.0 |
AOOC-NJC-BDC |
|
|
|
Ø76 × 3.0 |
|
|
|
AOOC-NOC-BGC |
铝合金 |
Ø38 × 1.5 |
AOOC-ADC-ADC |
|
|
|
Ø50.6 × 1.5 |
AOOC-AFC-ADC |
|
|
|
Ø60 × 2.0 |
AOOC-AJC-ADC |
AOOC-AJC-AEC |
|
|
Ø76 × 3.0 |
|
|
|
AOOC-AOC-AGC |
Ø80 × 4.0 |
|
|
AOOC-APC-AFC |
AOOC-APC-AGC |
Ø89 × 4.0 |
|
|
|
AOOC-ASC-AGC |
|
|
|

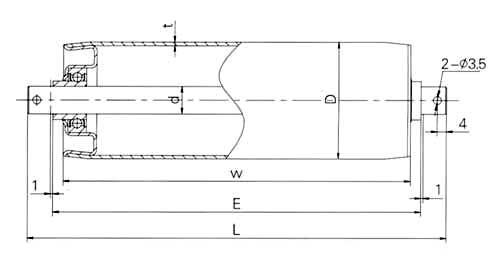

通轴销孔式
  |
辊子外径
D |
轴芯
直径
d |
|
38,42,50,57,60 |
12 |
E=W+9 L=E+31 |
50,60 |
15 |
E=W+9 L=E+31 |
80 |
17 |
E=W+9 L=E+31 |
76,80,89 |
20 |
E=W+9 L=E+31 |
优选长度:
E = 304,352,405,456,504,558,609,656,
710,761,863 |
|
外管材质 |
管径及壁厚 |
轴芯直径 d |
D × t |
Ø12 |
Ø15 |
Ø17 |
Ø20 |
钢制镀锌 |
Ø38 × 1.5 |
AOOC-HDA-ADD |
|
|
|
Ø42 × 1.5 |
AOOC-HEA-ADD |
|
|
|
Ø50 × 1.5 |
AOOC-HGA-ADD |
AOOC-HGA-AED |
|
|
Ø57 × 1.5 |
AOOC-HHA-ADD |
|
|
|
Ø60 × 1.5 |
AOOC-HIA-ADD |
|
|
|
Ø60 × 2.0 |
AOOC-HJA-ADD |
AOOC-HJA-AED |
|
AOOC-HJA-AGD |
Ø60 × 2.5 |
|
AOOC-HKA-AED |
|
|
Ø63 × 2.0 |
|
AOOC-HMA-AED |
|
|
Ø76 × 2.5 |
|
AOOC-HNA-AED |
|
AOOC-HNA-AGD |
Ø76 × 3.0 |
|
AOOC-HOA-AED |
|
AOOC-HOA-AGD |
Ø80 × 4.0 |
|
|
AOOC-HPA-AFD |
AOOC-HPA-AGD |
Ø89 × 3.0 |
|
|
|
AOOC-HQA-AGD |
Ø89 × 3.5 |
|
|
|
AOOC-HRA-AGD |
不锈钢 |
Ø38 × 1.5 |
AOOC-NCC.BDD |
|
|
|
Ø50 × 1.5 |
AOOC-NFC-BDD |
|
|
|
Ø60 × 1.5 |
AOOC-NIC-BDD |
AOOC-NJC-BED |
|
|
Ø60 × 2.0 |
AOOC-NJC-BDD |
|
|
|
Ø76 × 3.0 |
|
|
|
AOOC-NOC-BGD |
铝合金 |
Ø38 × 1.5 |
AOOC-ADC-ADD |
|
|
|
Ø50.6 × 1.5 |
AOOC-AFC-ADD |
|
|
|
Ø60 × 2.0 |
AOOC-AJC-ADD |
AOOC-AJC-AED |
|
|
Ø76 × 3.0 |
|
|
|
AOOC-AOC-AGD |
Ø80 × 4.0 |
|
|
AOOC-APC-AFD |
AOOC-APC-AGD |
Ø89 × 4.0 |
|
|
|
AOOC-ASC-AGD |
|
|
|
|
