输送系统 无动力式辊子输送机
输送货物 纸箱、杂物、托盘、标准周转箱等
适用场合 室内输送(不适用皮带机托辊、改向辊)
轴承组件 钢座、特制轴承组件 |
管 |
|
轴 |
直缝电焊钢管GB/T13793-1992
外径25,32,38,42,50,57,60mm
不锈钢焊接管GB/T12770-1991
外径25,32,38,50,60mm
铝合金挤圆管GB/T4436-1995
外径25,38,50,60mm |
|
冷拉圆钢GB/T905-1994
镀锌处理(仅用于不锈钢外管时)
弹簧压入式直径8,12
全扁榫式直径8,12

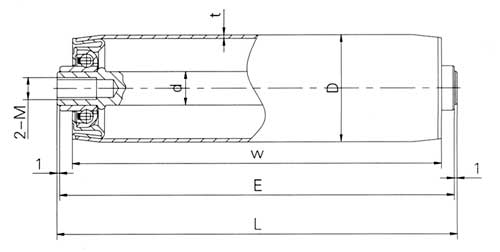

内牙轴式直径8,12

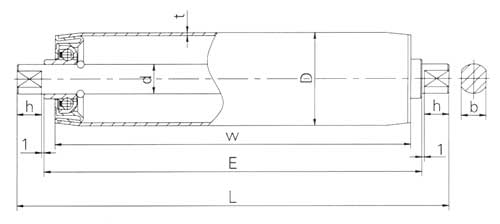

通轴销孔式直径8,12 |
|
|

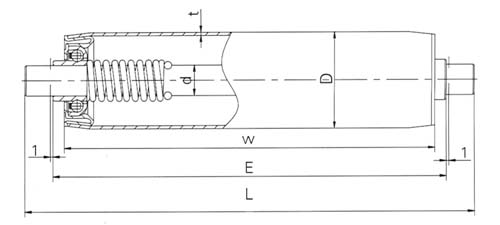

弹簧压入式
  |
辊子外径 D |
轴芯直径
d |
|
25 |
8 |
E = W + 9 L = W + 31 |
32 |
8 |
E = W + 9 L = W + 31 |
38,42 |
12 |
E = W + 9 L = W + 31 |
50,60 |
12 |
E = W + 8 L = W + 30 |
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863 |
|
外管材质 |
管径及壁厚 |
轴芯直径
d |
D × t |
Ø8 |
Ø12 |
钢制镀锌
|
Ø25 × 1.0 |
AOOA-HAA-ABA |
|
Ø32 × 1.5 |
AOOA-HBA-ABA |
|
Ø38 × 1.2 |
|
AOOA-HCA-ADA |
Ø42 × 1.5 |
|
AOOA-HEA-ADA |
Ø50 × 1.2 |
|
AOOA-HFA-ADA |
Ø57 × 1.5 |
|
AOOA-HHA-ADA |
Ø60 × 1.5 |
|
AOOA-HIA-ADA |
Ø60 × 2.0 |
|
AOOA-HJA-ADA |
不锈钢
|
Ø25 × 1.0 |
AOOA-NAC-BBA |
|
Ø32 × 1.5 |
AOOA-NBC-BBA |
|
Ø38 × 1.2 |
|
AOOA-NCC-BDA |
Ø50 × 1.2 |
|
AOOA-NFC-BDA |
Ø60 × 1.5 |
|
AOOA-NIC-BDA |
Ø60 × 2.0 |
|
AOOA-NJC-BDA |
铝合金
|
Ø26.5 × 1.5 |
AOOA-AAC-ABA |
|
Ø38 × 1.5 |
|
AOOA-ADC-ADA |
Ø50.6 × 1.5 |
|
AOOA-AFC-ADA |
Ø60 × 2.0 |
|
AOOA-AJC-ADA |
|
|
|
内牙轴式
  |
辊子外径 D |
轴芯直径
d |
|
25,32 |
8 |
E = W + 9 L = W + 11 |
38,42 |
12 |
E = W + 9 L = W + 11 |
50,60 |
12 |
E = W + 8 L = W + 10 |
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863 |
|
外管材质 |
管径及壁厚 |
轴芯直径
d |
D × t |
Ø8 / M5 × 10 |
Ø12 / M8 × 15 |
钢制镀锌
|
Ø25 × 1.0 |
AOOA-HAA-ABB |
|
Ø32 × 1.5 |
AOOA-HBA-ABB |
|
Ø38 × 1.2 |
|
AOOA-HCA-ADB |
Ø42 × 1.5 |
|
AOOA-HEA-ADB |
Ø50 × 1.2 |
|
AOOA-HFA-ADB |
Ø57 × 1.5 |
|
AOOA-HHA-ADB |
Ø60 × 1.5 |
|
AOOA-HIA-ADB |
Ø60 × 2.0 |
|
AOOA-HJA-ADB |
不锈钢
|
Ø25 × 1.0 |
AOOA-NAC-BBB |
|
Ø32 × 1.5 |
AOOA-NBC-BBB |
|
Ø38 × 1.2 |
|
AOOA-NCC-BDB |
Ø50 × 1.2 |
|
AOOA-NFC-BDB |
Ø60 × 1.5 |
|
AOOA-NIC-BDB |
Ø60 × 2.0 |
|
AOOA-NJC-BDB |
铝合金
|
Ø26.5 × 1.5 |
AOOA-AAC-ABB |
|
Ø38 × 1.5 |
|
AOOA-ADC-ADB |
Ø50.6 × 1.5 |
|
AOOA-AFC-ADB |
Ø60 × 2.0 |
|
AOOA-AJC-ADB |
|
|
|
全扁榫式
  |
辊子外径 D |
轴芯直径
d |
|
32 |
8 |
E = W + 9 L = W + 31 |
38 |
12 |
E = W + 9 L = W + 31 |
50,60 |
12 |
E = W + 8 L = W + 30 |
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863 |
|
外管材质 |
管径及壁厚 |
轴芯直径
d |
D × t |
Ø8 / bh 6 × 10 |
Ø12 / bh 8 × 10 |
钢制镀锌
|
Ø25 × 1.0 |
AOOA-HAA-ABC |
|
Ø32 × 1.5 |
AOOA-HBA-ABC |
|
Ø38 × 1.2 |
|
AOOA-HCA-ADC |
Ø42 × 1.5 |
|
AOOA-HEA-ADC |
Ø50 × 1.2 |
|
AOOA-HFA-ADC |
Ø57 × 1.5 |
|
AOOA-HHA-ADC |
Ø60 × 1.5 |
|
AOOA-HIA-ADC |
Ø60 × 2.0 |
|
AOOA-HJA-ADC |
不锈钢
|
Ø25 × 1.0 |
AOOA-NAC-BBC |
|
Ø32 × 1.5 |
AOOA-NBC-BBC |
|
Ø38 × 1.2 |
|
AOOA-NCC-BDC |
Ø50 × 1.2 |
|
AOOA-NFC-BDC |
Ø60 × 1.5 |
|
AOOA-NIC-BDC |
Ø60 × 2.0 |
|
AOOA-NJC-BDC |
铝合金
|
Ø26.5 × 1.5 |
AOOA-AAC-ABC |
|
Ø38 × 1.5 |
|
AOOA-ADC-ADC |
Ø50.6 × 1.5 |
|
AOOA-AFC-ADC |
Ø60 × 2.0 |
|
AOOA-AJC-ADC |
|
|
|

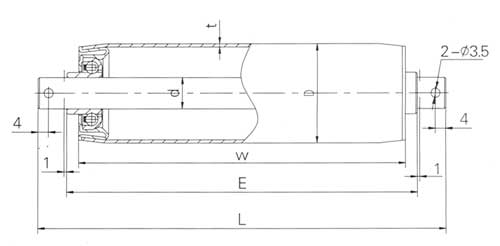

通轴销孔式
  |
辊子外径 D |
轴芯直径
d |
|
25,32 |
8 |
E = W + 9 L = W + 31 |
38,42 |
12 |
E = W + 9 L = W + 31 |
50,60 |
12 |
E = W + 8 L = W + 30 |
优选长度:
E = 304,352,405,456,504,558,609,656,710,761,863 |
|
外管材质 |
管径及壁厚 |
轴芯直径
d |
D × t |
Ø8 |
Ø12 |
钢制镀锌
|
Ø25 × 1.0 |
AOOA-HAA-ABD |
|
Ø32 × 1.5 |
AOOA-HBA-ABD |
|
Ø38 × 1.2 |
|
AOOA-HCA-ADD |
Ø42 × 1.5 |
|
AOOA-HEA-ADD |
Ø50 × 1.2 |
|
AOOA-HFA-ADD |
Ø57 × 1.5 |
|
AOOA-HHA-ADD |
Ø60 × 1.5 |
|
AOOA-HIA-ADD |
Ø60 × 2.0 |
|
AOOA-HJA-ADD |
不锈钢
|
Ø25 × 1.0 |
AOOA-NAC-BBD |
|
Ø32 × 1.5 |
AOOA-NBC-BBD |
|
Ø38 × 1.2 |
|
AOOA-NCC-BDD |
Ø50 × 1.2 |
|
AOOA-NFC-BDD |
Ø60 × 1.5 |
|
AOOA-NIC-BDD |
Ø60 × 2.0 |
|
AOOA-NJC-BDD |
铝合金
|
Ø26.5 × 1.5 |
AOOA-AAC-ABD |
|
Ø38 × 1.5 |
|
AOOA-ADC-ADD |
Ø50.6 × 1.5 |
|
AOOA-AFC-ADD |
Ø60 × 2.0 |
|
AOOA-AJC-ADD |
|
|
| |
|
