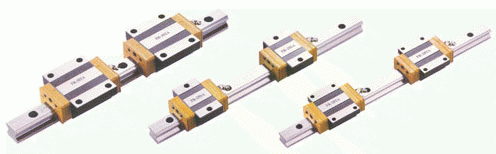

LSK法兰型滑块滑轨 FR-TA FR-SA

2025-2-20 16:53| 发布者: njhnzc| 查看: 13| 评论: 0

摘要: LSK滑块的尺寸LSK Block Dimensions /mm型号Width(W)Length(L)Height(M)BB1L1CTT1T2SxlNE润滑油接管FR-15TA5267.524415.539.52671119.5M5x1145.5M4×0.7PFR-15SA5250.524415.522.5-71119.5M5x1145.5M4×0.7PFR-20TA5 ...

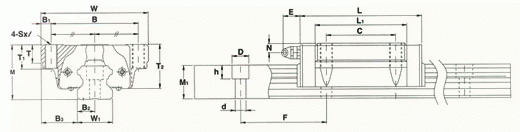

LSK滑块的尺寸 LSK Block Dimensions /mm

型号	Width (W)	Length (L)	Height (M)	B	B1	L1	C	T	T1	T2	Sxl	N	E	润滑油接管
FR-15TA	52	67.5	24	41	5.5	39.5	26	7	11	19.5	M5x11	4	5.5	M4×0.7P
FR-15SA	52	50.5	24	41	5.5	22.5	-	7	11	19.5	M5x11	4	5.5	M4×0.7P
FR-20TA	59	76.5	28	49	5	46.5	32	8	10	22.5	M6x10	4	12	M6×1.0P
FR-20SA	59	57.5	28	49	5	27.5	-	8	10	22.5	M6x10	4	12	M6×1.0P
FR-25TA	73	89.0	33	60	6.5	59.0	35	10	16	26	M8x16	4.5	12	M6×1.0P
FR-25SA	73	65.0	33	60	6.5	35.0	-	10	16	26	M8x16	4.5	12	M6×1.0P
FR-30TA	90	102.5	42	72	9	69.0	40	12	18	34.0	M10x18	7	12	M6×1.0P
FR-30SA	90	73.5	42	72	9	40.5	-	12	18	34.0	M10x18	7	12	M6×1.0P
FR-35TA	100	114.0	48	82	9	79.0	50	13	21	39.0	M10x21	8	12	M6×1.0P
FR-35SA	100	80.5	48	82	9	45.5	-	13	21	39.0	M10x21	8	12	M6×1.0P

LSK滑轨的尺寸 LSK Rail Dimensions /mm

Width (W1)	Height (M1)	Pitch (F)	B2	B3	dxDxh	C kgf	Co kgf	MA kgf-M	MB kgf-M	MC kgf-M	Block kgf	Rail kgf
15	15	60	7.5	18.5	4.5×7.5×5.5	850	1380	7.3	7.3	10.1	0.2	1.7
15	15	60	7.5	18.5	4.5×7.5×5.5	550	1132	2.04	2.04	4.08	0.15	1.7
20	18	60	10	19.5	6×9.5×8.5	1410	2430	15.9	15.9	23.7	0.35	2.5
20	18	60	10	19.5	6×9.5×8.5	730	1468	3.06	2.04	7.14	0.42	2.5
23	22	60	11.5	25	7×11×9	2030	3510	27.3	27.5	40.0	0.59	3.6
23	22	60	11.5	25	7×11×9	1190	2295	5.1	4.08	12.24	0.71	3.6
28	26	80	14	31	9×14×12	2860	4770	43.8	43.8	65.8	1.1	5.1
28	26	80	14	31	9×14×12	1754	3315	9.18	8.16	21.42	1.3	5.1
34	29	80	17	33	9×14×12	3800	6230	40.8	34.68	61.2	1.6	6.9
34	29	80	17	33	9×14×12	2428	4498	14.28	12.24	34.68	2.0	6.9
