AGW15SA滑块、AGW15CA滑块、AGW20SA滑块、AGW20CA滑块

2025-1-6 18:18| 发布者: njhnzc| 查看: 27| 评论: 0

摘要: 型号组件尺寸(mm)滑块尺寸(mm)滑轨尺寸(mm)HH1NWBB1CL1LGMTH2WRHRDhdPEAGW 15SA24518.552415.5-22.8415.7M575.51513.564.53.56020AGW 15CA2638.756.9AGW 20SA28619.559495-26.24812M6962015.59.58.566020AGW 20CA324 ...

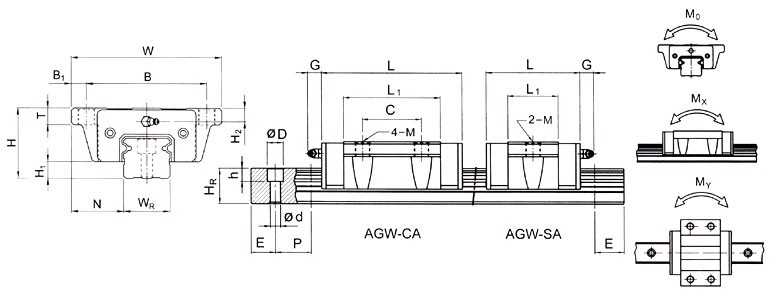

型号	组件尺寸 (mm)			滑块尺寸 (mm)										滑轨尺寸 (mm)
	H	H₁	N	W	B	B₁	C	L₁	L	G	M	T	H₂	W_R	H_R	D	h	d	P	E
AGW 15SA	24	5	18.5	52	41	5.5	-	22.8	41	5.7	M5	7	5.5	15	13.5	6	4.5	3.5	60	20
AGW 15CA							26	38.7	56.9
AGW 20SA	28	6	19.5	59	49	5	-	26.2	48	12	M6	9	6	20	15.5	9.5	8.5	6	60	20
AGW 20CA							32	44.1	65.9
AGW 25SA	33	7	25	73	60	6.5	-	34.5	58.7	12	M8	10	7	23	18.5	11	9	7	60	20
AGW 25CA							35	58.3	82.5
AGW 30SA	42	10	31	90	72	9	-	36.6	66.4	12	M10	10	8	28	24	11	9	7	80	20
AGW 30CA							40	65.2	95

型号	滑轨的固定螺栓尺寸 (mm)	基本动额定负荷 C(kgf)	基本静额定负荷 C₀(kgf)	容许静力矩			重量
型号	滑轨的固定螺栓尺寸 (mm)	基本动额定负荷 C(kgf)	基本静额定负荷 C₀(kgf)	M_R (kgf-m)	M_P (kgf-m)	M_Y (kgf-m))	滑块 (kg)	滑轨 (kg/m)
AGW 15SA	M3×16	440	590	4.8	2.3	2.3	0.15	1.43
AGW 15CA	M3×16	640	1010	8.3	6.3	6.3	0.23	1.43
AGW 20SA	M5×16	650	920	10.1	4.5	4.5	0.24	2.16
AGW 20CA	M5×16	970	1450	15.9	10.4	10.4	0.36	2.16
AGW 25SA	M6×20	1080	1330	16.7	7.8	7.8	0.44	2.95
AGW 25CA	M6×20	1550	2290	28.7	21.1	21.1	0.68	2.95
AGW 30SA	M6×25	1550	2030	30.8	14.0	14.0	0.72	4.76
AGW 30CA	M6×25	2470	3390	51.3	35.5	35.5	1.16	4.76
